Junchi Heavy Industry manufactures
Dump Semi-trailers with tank volumes of 24, 30, 35 and 45 cubic meters. Customization is available to meet your unique requirements.

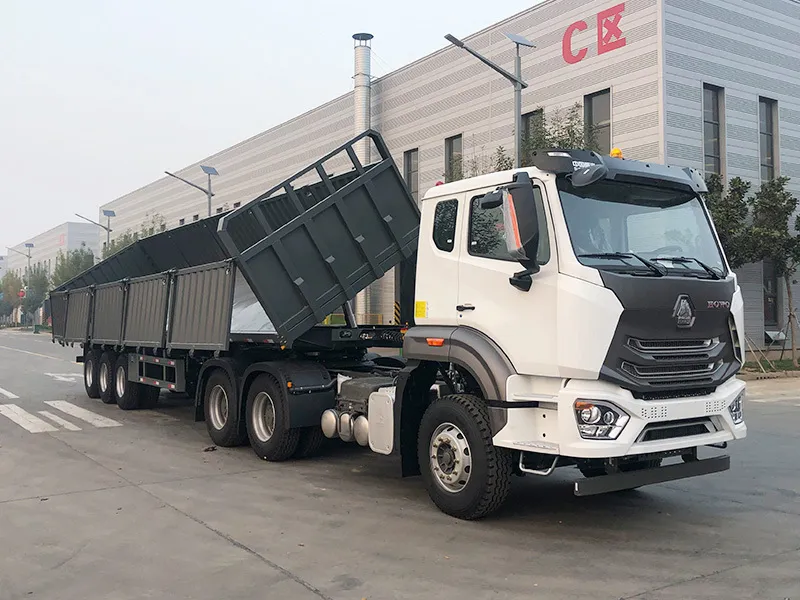

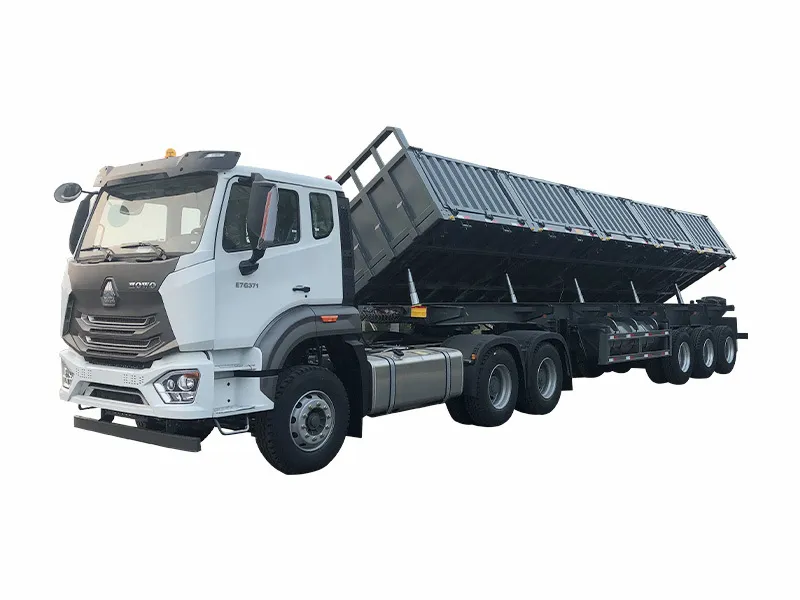

Our product range includes standard dump semi-trailers, U-type rear tippers, flatbed container rear tippers, skeleton dump semi-trailers and side dump semi-trailers.
Product Description
Made of high-strength steel, these semi-trailers are sturdy and durable for transporting sand, small stones and rocks. The standard load capacities are 40 tons, 60 tons and 80 tons, with customized options available.
They are equipped with HYVA hydraulic cylinders and world-famous FUWA and BPW axles, ensuring outstanding performance and longer service life.
Advantages
Adopting double-plate main beam for heavy-duty use, featuring high load capacity and great resistance to damage.
Fitted with heavy-duty hydraulic cylinders with larger bore diameter. It delivers stronger lifting power and higher lifting height for stable operation and anti-rollover performance.
Equipped with 4 auxiliary beams and cross balance beams. The lattice structure strengthens the side doors remarkably.
Four tipping brackets distribute stress evenly on the rear part during unloading, effectively preventing trailer damage.
Widened and thickened leaf springs provide excellent shock absorption.
The optimized structural design effectively increases the rated load.
Specifications
| Parameter | Specification |
|---|
| Overall Dimensions | 9000mm × 2500mm × 3950mm |
| Volume | 35 m³ |
| Axle | Tri-axle |
| Suspension | Heavy-duty mechanical suspension |
| Hydraulic System | Model 196 hydraulic cylinder |
| Tires | 12 units |
| Kingpin | 90# |
| Landing Gear | JOST |
| Brake System | WABCO |
| Electrical System | 24V with LED lights
|
