1. Product Description

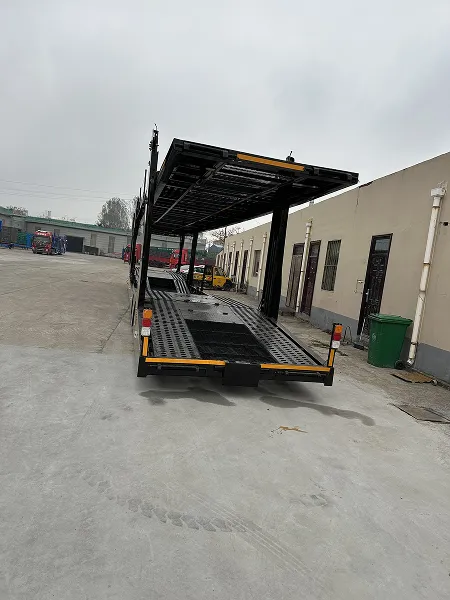

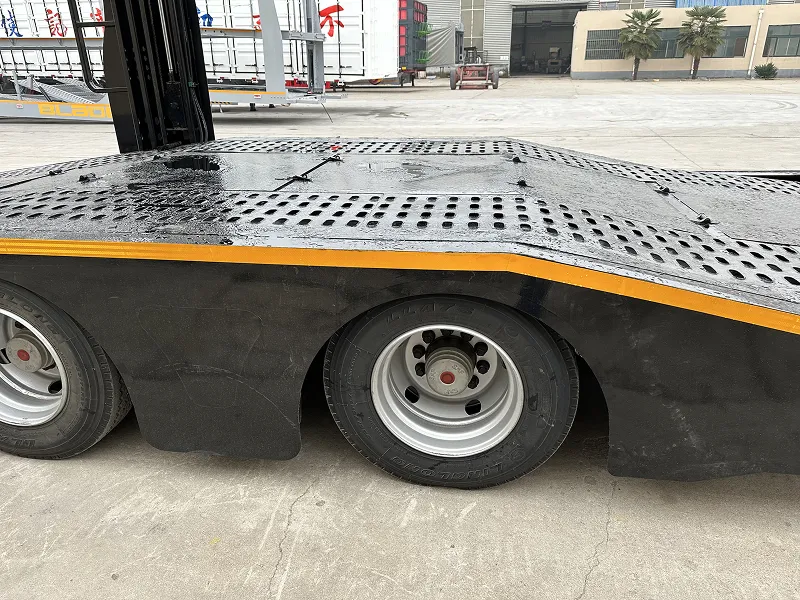

The Double-Deck Car Carrier Body from Junchi Heavy Industry is a two-level loading system that doubles transport capacity per trip. The upper deck is hydraulically liftable, allowing cars to be loaded on both levels. Lower deck height is optimized for sedans; upper deck clearance fits SUVs and crossovers.
2. Specifications & Models
| Parameter | Specification |
|---|
| Model | JC-CAR-DD |
| Axles | 2 or 3 axles (depends on chassis) |
| Load Capacity | 25 – 35 tons |
| Vehicle Capacity | 8 cars (sedans/SUVs) |
| Deck Length | 13,000 – 14,500 mm |
| Deck Width | 2,550 mm |
| Upper Deck | Hydraulically liftable (adjustable height) |
| Loading System | Hydraulic rear ramps + foldable upper ramps |
| Tire Spec | 12R22.5 (8 or 12 pcs) |
| Braking System | WABCO EBS |
| Suspension | Air suspension (recommended) |
The Double-Deck Car Carrier Body from Junchi Heavy Industry is a two-level loading system that doubles transport capacity per trip. The upper deck is hydraulically liftable, allowing cars to be loaded on both levels. Lower deck height is optimized for sedans; upper deck clearance fits SUVs and crossovers.
