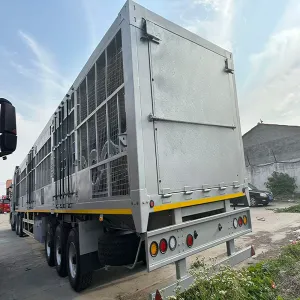

Tri-Axle Aluminum Livestock Semi-Trailer
Tri-Axle Aluminum Livestock Semi-Trailer
This Tri-Axle 3-Deck Aluminum Livestock Semi-Trailer is professionally manufactured for long-distance transportation of live animals. The whole cargo box adopts lightweight high-strength aluminum alloy, much lighter weight than carbon steel models. Equipped with hydraulic adjustable decks, it can switch freely between 2 layers and 3 layers. Large-area ventilated mesh side panels and full set of water spray cooling system greatly improve survival rate of pigs, cattle, sheep, chickens, ducks and other livestock during long haul. Widely used in farms, slaughterhouses and inter-provincial agricult...
-
Share：
Contact us
Inquiry
-
1. Product Introduction

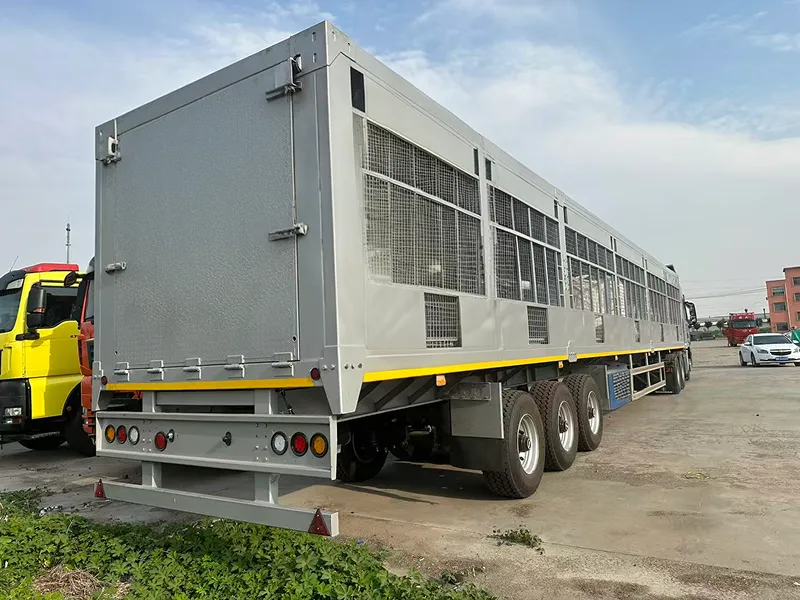

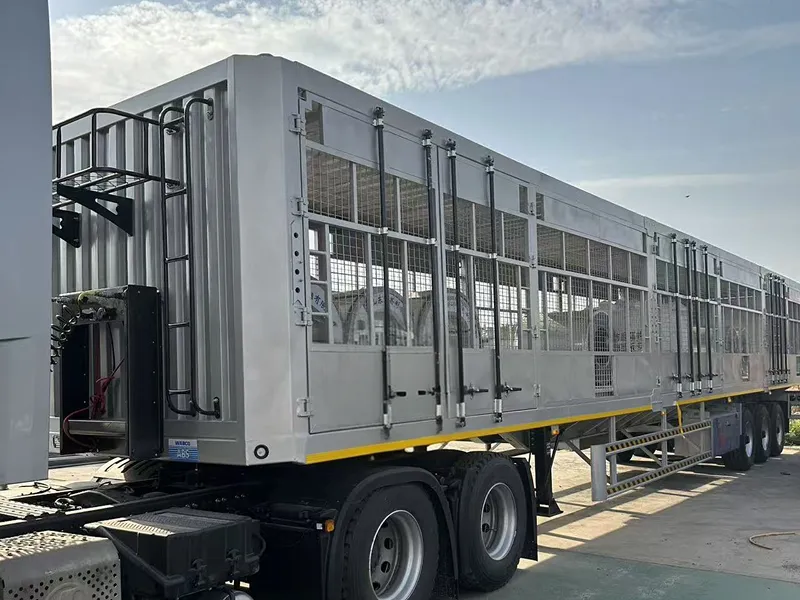

This Tri-Axle 3-Deck Aluminum Livestock Semi-Trailer is professionally manufactured for long-distance transportation of live animals. The whole cargo box adopts lightweight high-strength aluminum alloy, much lighter weight than carbon steel models. Equipped with hydraulic adjustable decks, it can switch freely between 2 layers and 3 layers. Large-area ventilated mesh side panels and full set of water spray cooling system greatly improve survival rate of pigs, cattle, sheep, chickens, ducks and other livestock during long haul. Widely used in farms, slaughterhouses and inter-provincial agricultural logistics. Brand marked LUEN AUTO, mature craft and legal for license registration.
2. Main Technical Specifications
| Item | Standard Configuration |
|---|
| Model Name | 3 Deck Aluminum Livestock Transport Semi-Trailer |

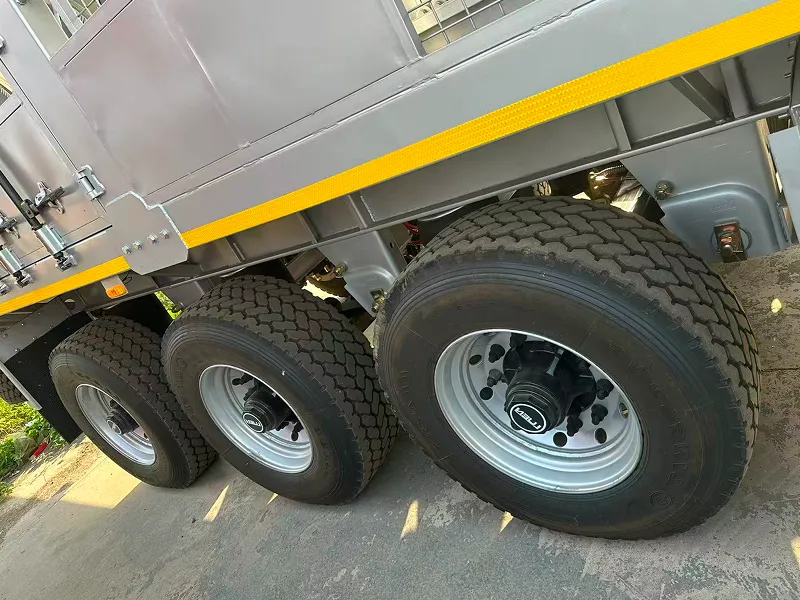

| Axle | 3 pcs 13T FUWA heavy-duty axles, drum brake, ABS system |
| Overall Dimension | L12800mm × W2550mm × H3900mm |
| Cargo Box Material | 5052 high-strength aluminum alloy plate, anti-rust & anti-corrosion |
| Deck Structure | Hydraulic lifting decks, switchable between 2/3 layers; anti-slip patterned aluminum floor for each layer |
| Ventilation | Full-size diamond mesh ventilation on both sides, front-rear cross air flow |
| Tire | 12R22.5 tubeless heavy-duty tires, 12 tires + 1 spare tire |
| King Pin | Standard 2"(50mm) JOST king pin, 3.5"(90mm) optional |
| Empty Curb Weight | Approx. 6.8 tons (carbon steel equal size ≈9 tons, extra 2 tons payload) |
| Max Gross Vehicle Weight | 40,000KG |
| Rated Payload | 33,200KG |
| Door Design | Multi-piece side doors + integral hydraulic rear door for easy loading/unloading |
| Standard Safety Parts | Static grounding strap, side anti-collision guardrail, LED marker & turn lights, reflective safety marks |
| Optional Upgrades | Auto water spray cooling system, animal drinking trough, inner surveillance camera, forced ventilation fans, hydraulic loading ramp |
| Applicable Live Stock | Pigs, beef cattle, sheep, horses, chicken, duck, goose and other poultry |
3. Structural & Competitive Advantages
Lightweight Aluminum Cargo Box
Grade 5052 industrial aluminum, resistant to manure and rain corrosion; curb weight reduced by ~2 tons, higher legal payload and lower fuel consumption for long trips.
Flexible Hydraulic Deck System
2-layer high ceiling for large animals like cattle & horses; 3-layer compact layout for piglets, sheep and poultry to maximize space utilization.
Full Ventilation For High Survival Rate
Full side metal mesh ensures continuous air circulation; optional high-pressure spray cools and replenishes water in hot weather, reducing animal stress and mortality effectively.
Heavy-Duty Durable Chassis Frame
Integral high-tensile manganese steel main beam with three-layer anti-corrosion coating after sand blasting. 13-ton axles offer strong load capacity for highway, rural and rough mine roads.
Animal-Friendly Loading Structure
Separate side doors allow zone-by-zone loading; hydraulic rear door creates gentle slope to prevent fall injury. Diamond anti-slip floor avoids slipping and trampling.
Complete Legal Certifications
Complete vehicle production announcement, chassis NDT inspection report, full safety performance test, available for license registration nationwide, compliant with livestock quarantine transport standards.
